NexiusZoom Series Stereo Microscopes
NexiusZoom EVO: Precision and Versatility in Stereo Microscopy
Experience the epitome of high-precision examination and three-dimensional imaging with the NexiusZoom EVO stereo microscopes. Specifically engineered for your most demanding applications, these exceptional zoom microscopes provide unparalleled accuracy and clarity. Whether analyzing material surfaces or observing and preparing biological samples, the NexiusZoom EVO is your gateway to comprehensive insights.
We understand that analyzing complex experiments can be challenging enough—choosing the perfect microscope for your application shouldn't be.
Let us help you cut through the confusion. Call us at 562-237-4523 or email us at microscopes@globescientific.com. We'll promptly respond with personalized recommendations. We're eager to assist you!
Features:
- Binocular and trinocular heads with HWF 10x/22mm or HWF 10x/23mm eyepieces (EVO) for comfortable and immersive viewing experiences.
- Double 3W LED illumination, ensuring optimal illumination for your specimens.
- Large working distance, allowing ample space for sample manipulation and preparation.
- Zoom ratio of 1:8.4, offering a remarkable magnification range from 6.5x to 55x. Capture the finest details and explore the microscopic world with precision.
- Ergonomic stands designed to provide optimal comfort during extended observation sessions.
- Configurations available with magnification capabilities up to 220x, catering to a wide range of applications.
- CE certified, guaranteeing compliance with rigorous international standards for safety and quality.
- Backed by a 10-year warranty, providing peace of mind and long-term support for your investment.
NexiusZoom EVO 0.65-5.5 (WF 10x/23mm)
|
|
ENZ-1703-P |
ENZ-1703-PG |
ENZ-1703-S |
|
Head |
trinocular 45º inclined. 54-75mm interpupillary. +/-5mm diopter adjustment on both eyepiece tubes |
trinocular 45º inclined. 54-75mm interpupillary. +/-5mm diopter adjustment on both eyepiece tubes |
trinocular 45º inclined. 54-75mm interpupillary. +/-5mm diopter adjustment on both eyepiece tubes |
|
Eyepiece |
HWF10x/23mm |
||
|
Focusing |
Macro on both sides of the head holder |
||
|
Objective |
0.65x – 5.5x zoom with clip stop (6.5x – 55x) |
||
|
Stage |
Plain with clips, black/White and clear plates |
||
|
Illumination |
3W LED incident and transmitted simultaneously |
3W LED incident by two gooseneck arms and transmitted simultaneously |
3W LED incident and transmitted simultaneously |
|
Stand |
Pillar WD:110mm |
Rack and pinion. WD:110mm |
|
EYEPIECES
- The NexiusZoom EVO series are supplied with a pair of HWF10x/23mm eyepieces
HEAD
- Trinocular heads with 45° inclined tubes. Both eyepieces with ±5 diopter adjustments
- Interpupillary distance adjustable between 54mm and 75mm. The trinocular head is supplied with a fixed light path beamsplitter (50:50).
- The NexiusZoom EVO models are equipped with click-stops
OBJECTIVES
- The NexiusZoom EVO is supplied with a 1:8.4 plan achromatic zoom objective with 0.65x to 5.5x magnifications, a field of view from 35.4mm to 4.2mm. WD 110mm
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
MAGNIFICATIONS
Working distance and field of view with standard HWF 10x / 23 High Wide Field eyepieces of the NexiusZoom Evo:
![]({{media url="wysiwyg/NexiusTable.png"}})
STANDS
- Ergonomically designed pillar or rack & pinion stand with 3W incident and 3W transmitted LED illuminations (-P and -S stands)
- Ergonomically designed pillar stand with two 3W gooseneck type incident LED illuminations on each side and a 3W transmitted LED illumination (-PL stand)
All pillar and rack & pinion stands are supplied with two object clamps. Alloy metal cast, hardened coating
ILLUMINATION
- The 3W transmitted and incident LED illuminators with internal power supply 100-240VAC operation. Both illuminators can be used simultaneously, and the light intensities can be adjusted separately
APL (Antimicrobial Protection Layer)
- Developed with a protective microbe-resistant coating, the NexiusZoom microscope series utilizes a revolutionary paint treatment that helps restrict the growth of microorganisms, including bacteria and mold, which makes it an ideal solution for any laboratory environment
PACKAGE CONTENT
- Supplied with power cords, dust cover, a spare fuse, user manual. All packed in a polystyrene box
|
Item # |
Description |
|

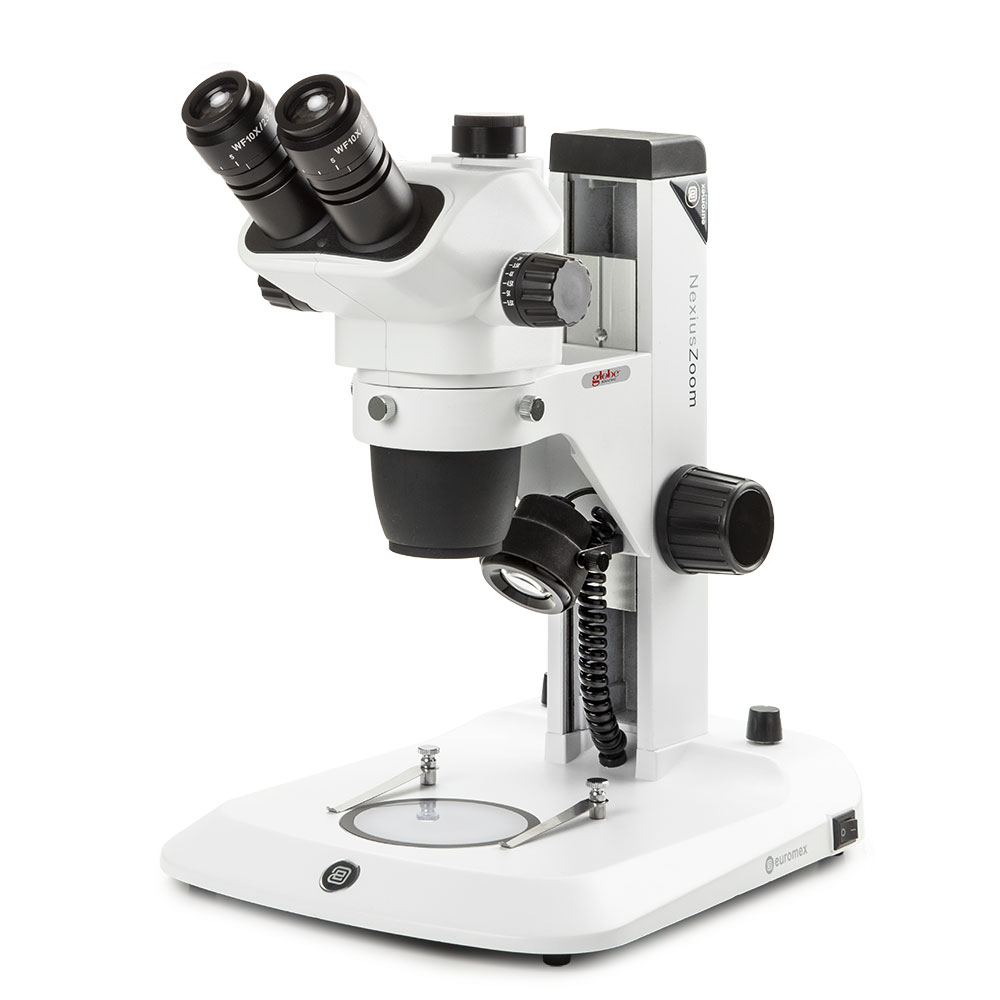

ENZ-1703-S |
Trinocular stereo zoom microscope NexiusZoom EVO, 0.65x to 5.5x zoom objective, magnification from 6.5x to 55x with rack and pinion stand. Incident and transmitted 3 W LED illuminations |
|

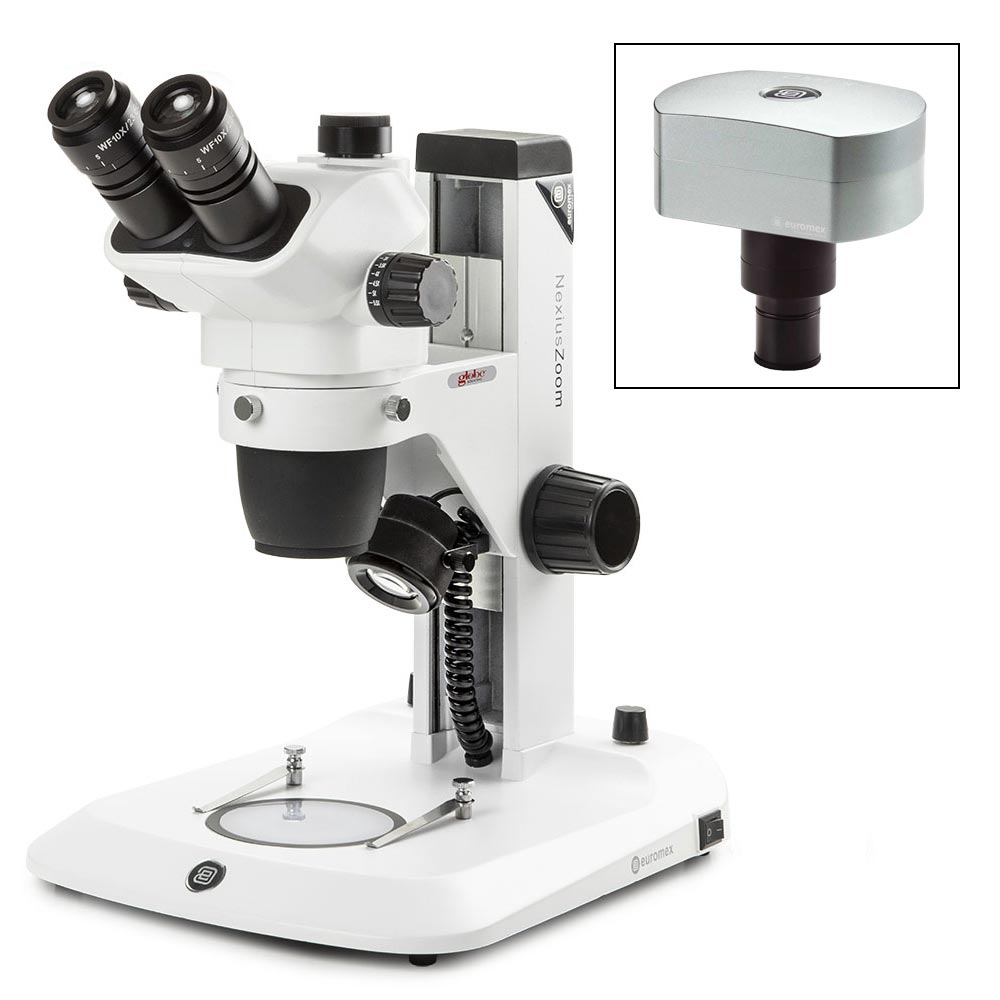

ENZ-1703-S-DC18 |
Trinocular stereo zoom microscope NexiusZoom EVO, 0.65x to 5.5x zoom objective, magnification from 6.5x to 55x with rack and pinion stand. Incident and transmitted 3 W LED illuminations, with 18MP Camera |
|

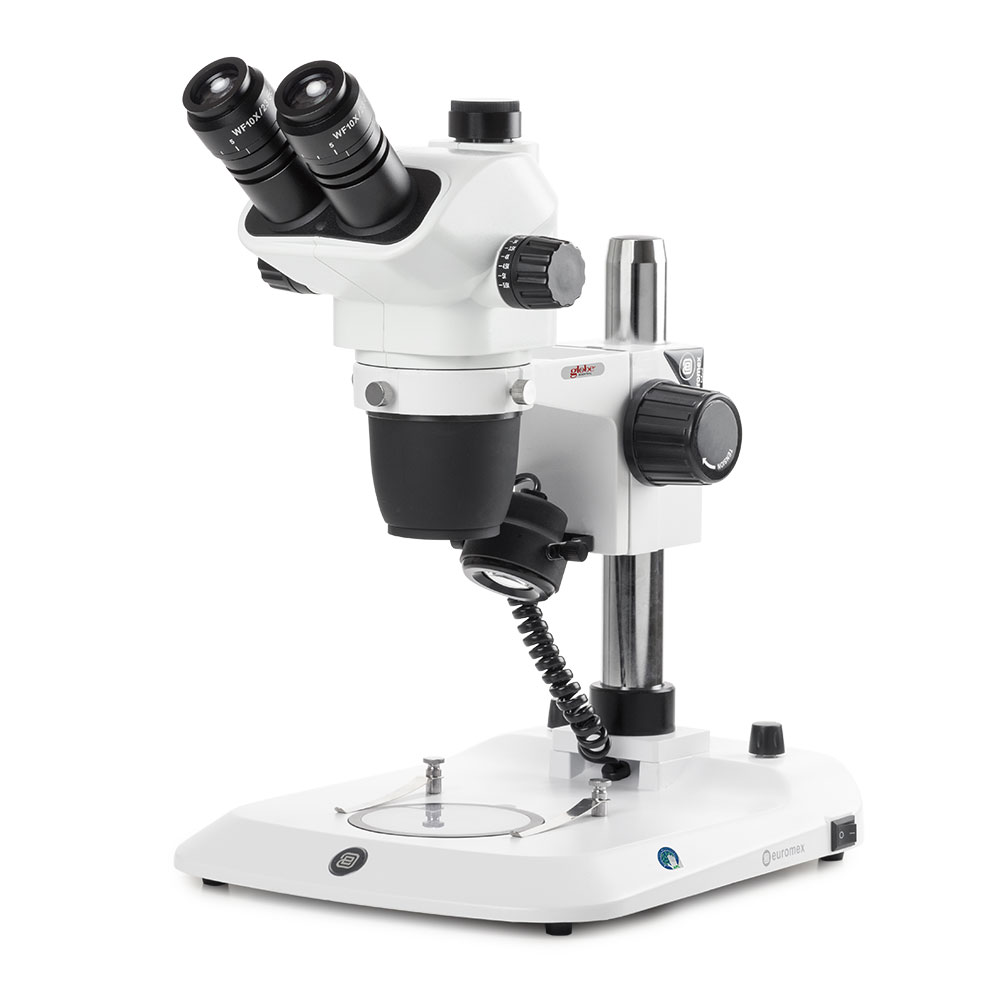

ENZ-1703-P |
Trinocular stereo zoom microscope NexiusZoom EVO, 0.65x to 5.5x zoom objective, magnification from 6.5x to 55x with pillar. Incident and transmitted 3 W LED illuminations |
|

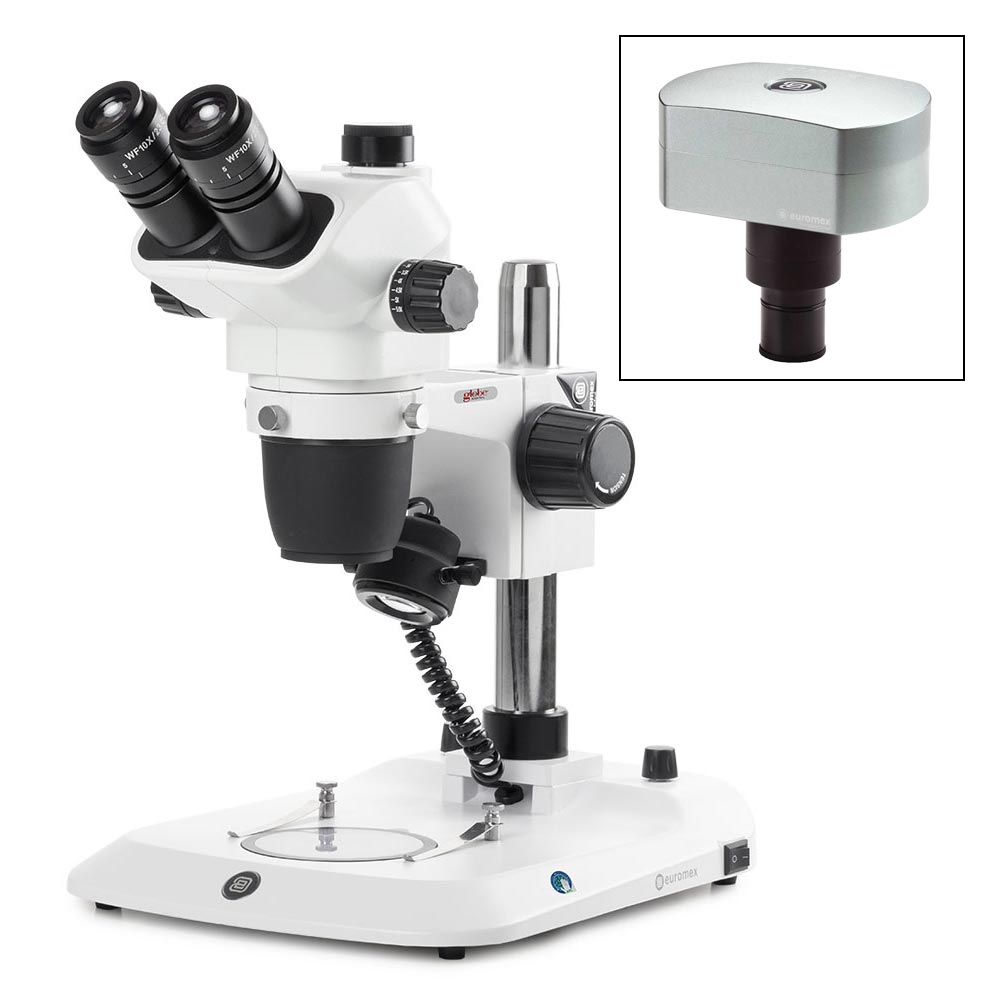

ENZ-1703-P-DC18 |
Trinocular stereo zoom microscope NexiusZoom EVO, 0.65x to 5.5x zoom objective, magnification from 6.5x to 55x with pillar. Incident and transmitted 3 W LED illuminations, with 18MP Camera |
|
ENZ-1703-PG |
Trinocular stereo zoom microscope NexiusZoom EVO, 0.65x to 5.5x zoom objective, magnification from 6.5x to 55x with pillar. Two incident LED illuminations with Gooseneck and one transmitted 3 W LED illumination |
|

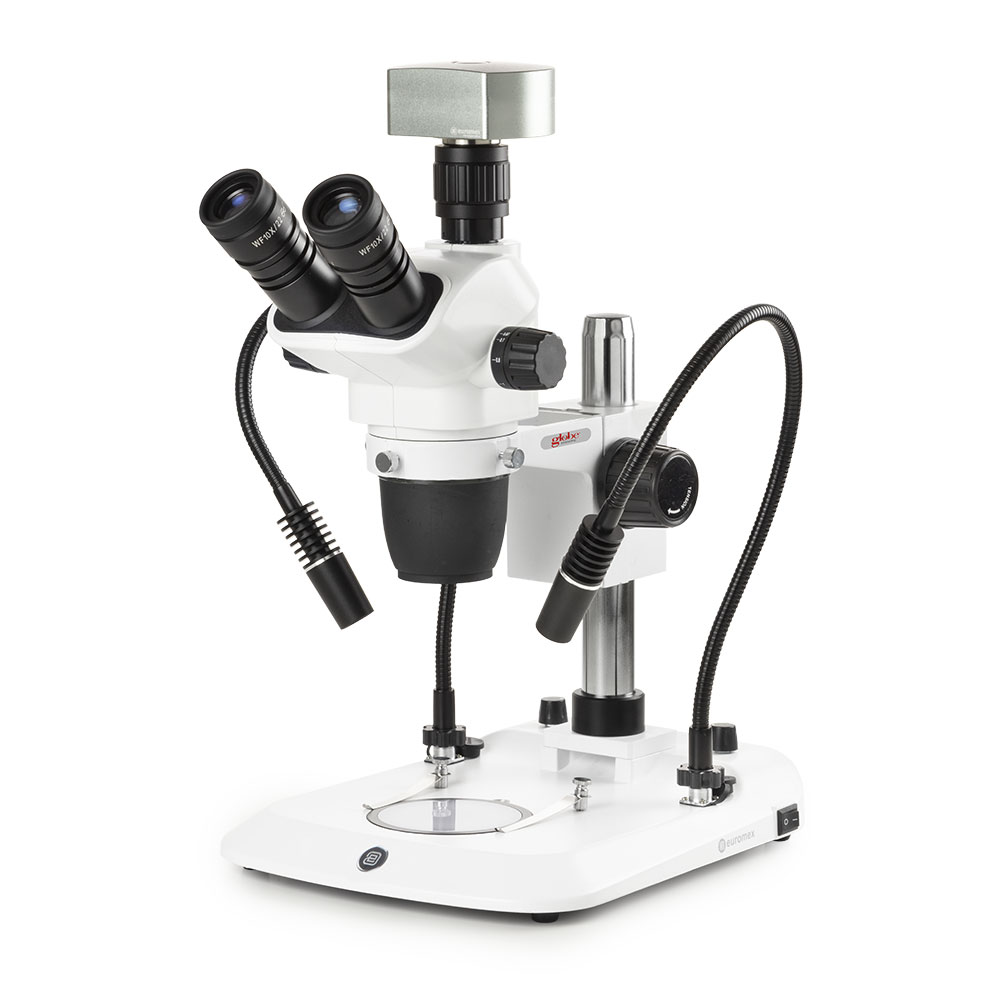

ENZ-1703-PG-DC18 |
Trinocular stereo zoom microscope NexiusZoom EVO, 0.65x to 5.5x zoom objective, magnification from 6.5x to 55x with pillar. Two incident LED illuminations with Gooseneck and one transmitted 3 W LED illumination, with 18MP Camera |
