Non-Sterile PVDF Syringe Filters

Non-sterile Diamond® PureFlow™ syringe filters are perfect for use in a wide range of filtration and sample applications where sterility is not needed. Non-sterile filters are used in analytical chemistry for sample preperation, HPLC operations, and protecting analytical equipment from particle contamination.

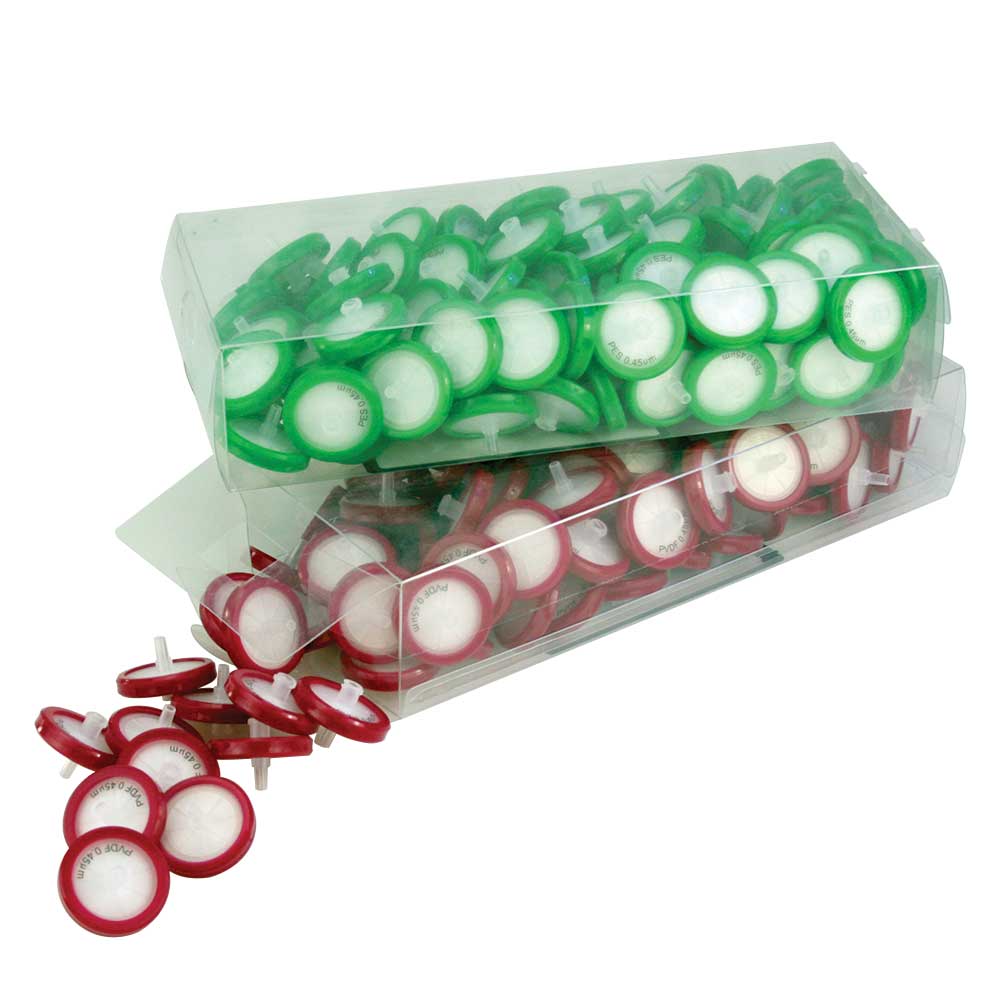

  • Bulk packaged with filter membrane type and membrane porosity printed on each filter.
  • Polypropylene microfiber pre-filter layer to improve filtration of particulate-laden fluids.

Get the Diamond® PureFlow™ Advantage:

  • Performance - High flow rates and low absorption membranes for minimal sample loss.
  • Simplicity - Color coded outer ring allows easy identification of membrane and filter media type. Each unit is clearly marked with an identifying code to denote pore size and membrane material.
  • Strength - Bonded outer ring on housing provides strength under higher working pressures for high performance needs
  • Efficiency - Integral polypropylene pre-filter for high flow rates and fast filtration
  • Quality - Manufacturing process certified to ISO 9001 standards

PVDF (Polyvinylidene Fluoride) Hydrophilic Membrane

  • Low protein binding
  • Aqueous and organic samples
  • Good resistance to solvents that exhibit low levels of UV absorbing extracables.
  • Broad chemical compatibility
  • Ideal for HPLC sample filtration and general biological filtration
  • pH range: 1-12

Specifications
Diameter 13mm 30mm
Housing Material PP PP
Filtration Area (cm²) 0.092 4.9
Holdup Volume (μl) <10 <120
Volume Throughput (ml) 10 100
Connections (Inlet/Outlet) Female Luer Lock Inlet / Male Luer Slip Outlet Female Luer Lock Inlet / Male Luer Slip Outlet
Max Operating Pressure (psi) 87 87
Max Operating Temperature (°C) 100 100
Prefilter PP PP



Syringe Filters Brochure

Ordering Information

Item Number ImageDescription Color UnitQuantity Unit Price

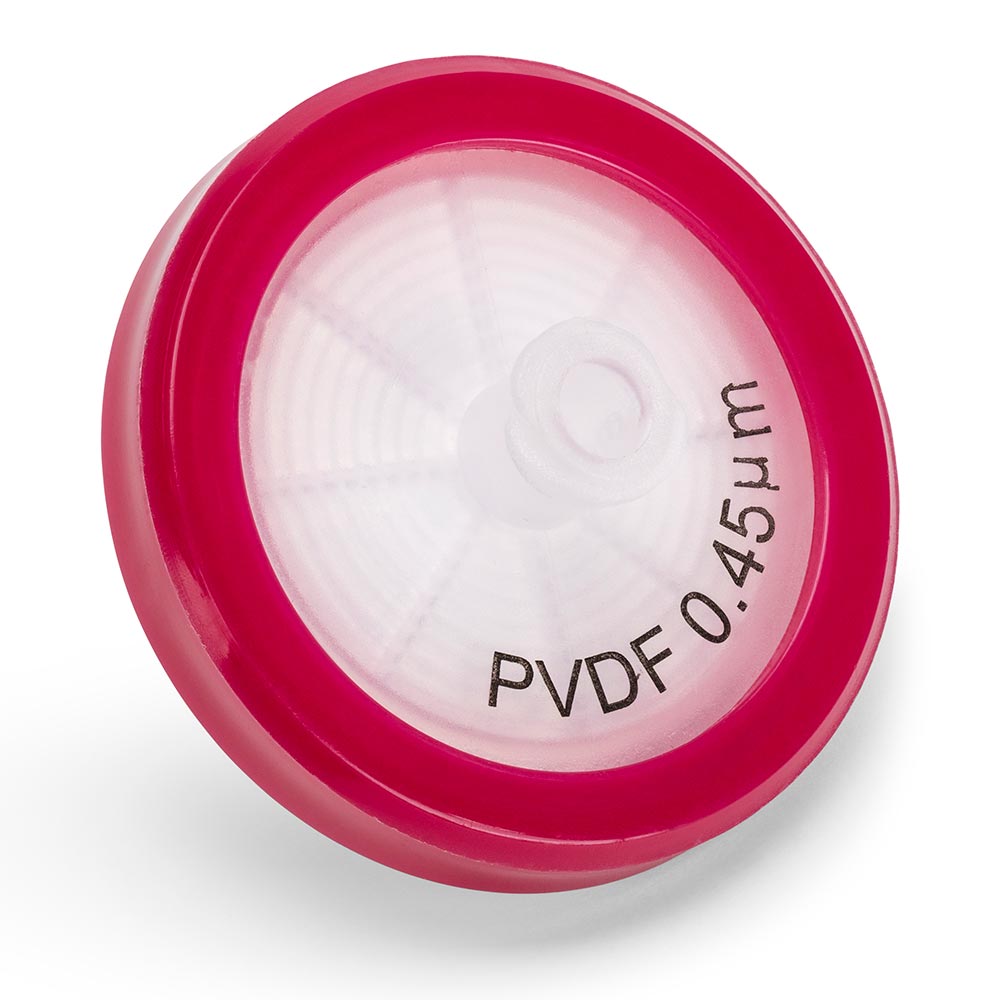

SF-PVDF-H-4530 Syringe Filter, PVDF Membrane, 0.45μm Porosity, 30mm Diameter, PP Housing, Non-sterile, Bulk Packed Syringe Filter, PVDF Membrane, 0.45μm Porosity, 30mm Diameter, PP Housing, Non-sterile, Bulk Packed Magenta Box of 100 $186.48
Syringe Filter, PVDF Membrane, 0.45μm Porosity, 30mm Diameter, PP Housing, Non-sterile, Bulk Packed Syringe Filter, PVDF Membrane, 0.45μm Porosity, 30mm Diameter, PP Housing, Non-sterile, Bulk Packed
Item Number SF-PVDF-H-4530
Unit Price $186.48
Color Magenta
Unit Box of 100
Quantity
Summary: $0.00
