Sterile PTFE Syringe Filters

Sterile Diamond® PureFlow™ syringe filters satisfy requirements of life science applications for sterilization of solutions or clarification of biological fluids. Sterile filters include a polypropylene microfiber pre-filter layer to improve filtration of particulate-laden fluids that are difficult to filter with single layer syringe filters.

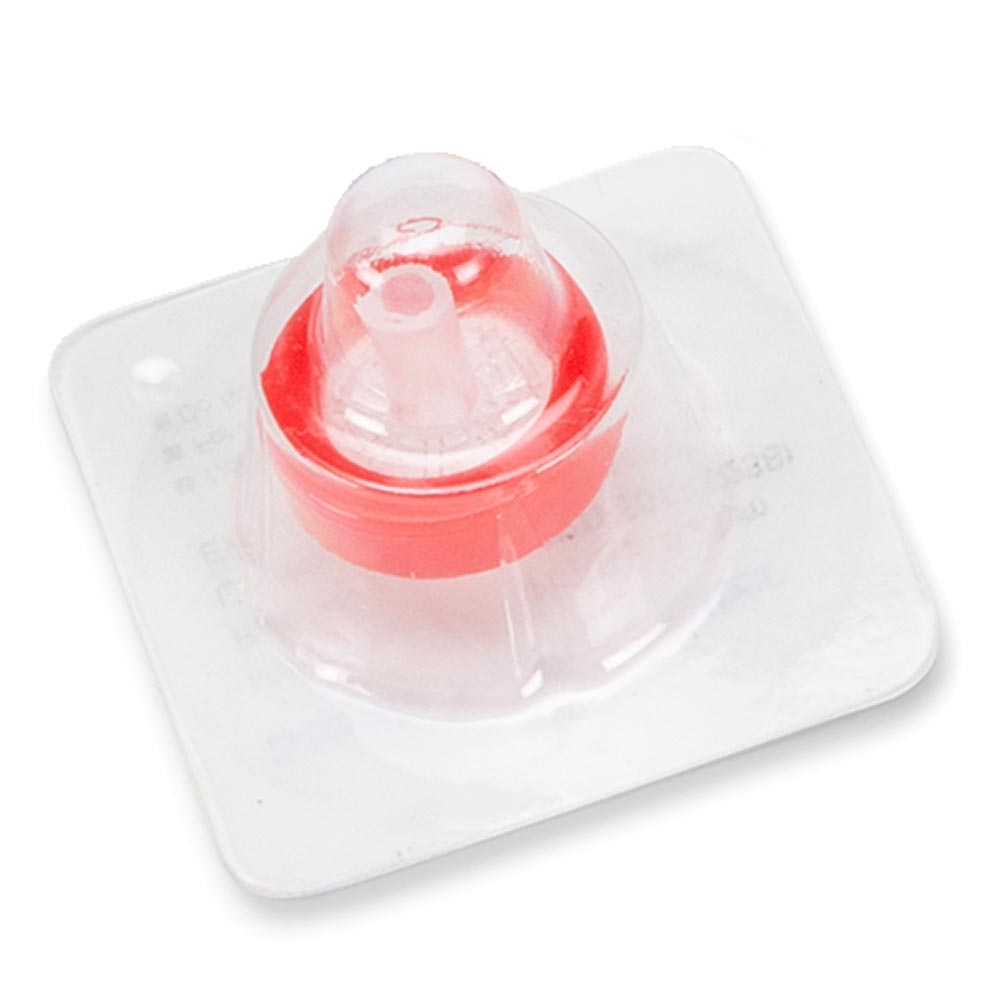

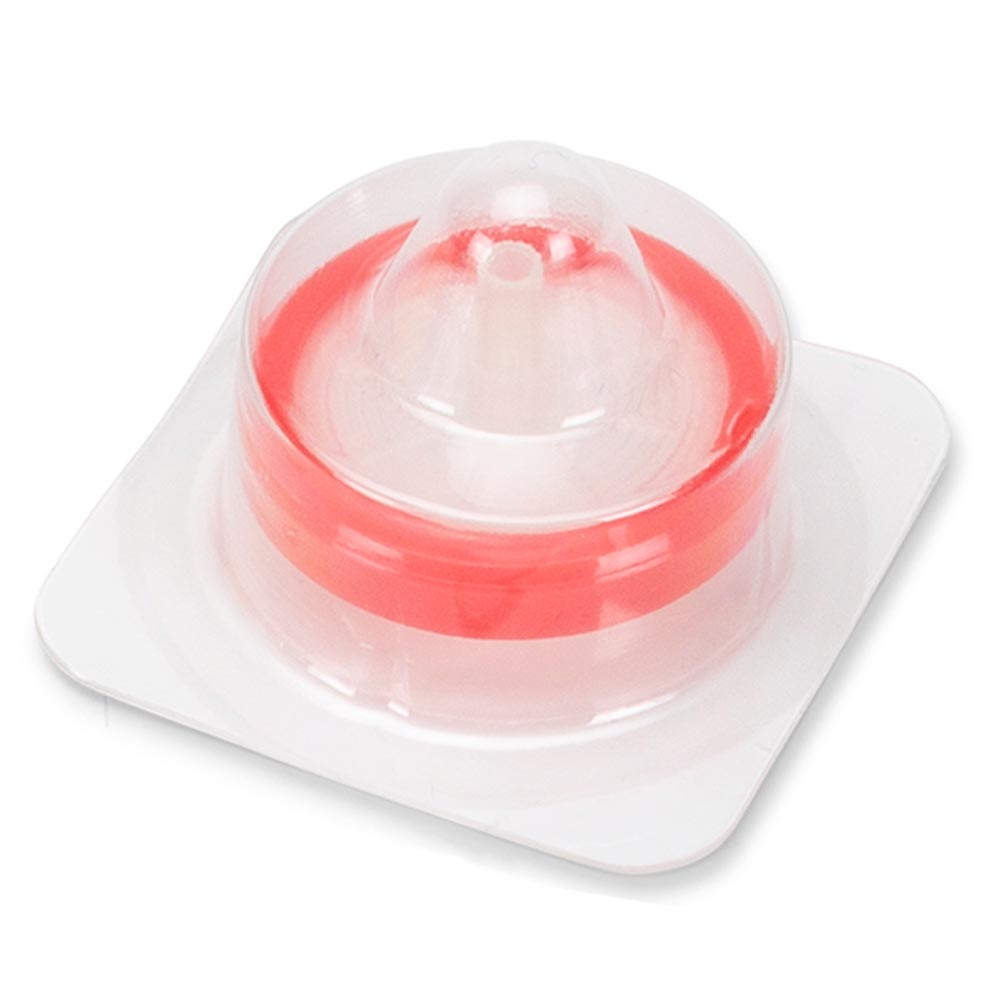

  • Individually packaged in peelable blister with filter diameter, membrande type, and membrane porosity clearly marked on the package
  • Sterilized by Gamme Irradiation to SAL 10-6
  • RNase & Dnase free

Get the Diamond® PureFlow™ Advantage:

  • Performance- High flow rates and low absorption membranes for minimal sample loss
  • Simplicity- Color coded outer ring allows easy identification of membrane and filter media type. Each unit is clearly marked with an identifying code to denote pore size and membrane material.
  • Strength- Bonded outer ring on housing provides strength ender higher working pressures for higher performance needs
  • Efficiency- Integral polypropylene pre-filter for high flow rates and fast filtration
  • Quality- Manufacturing process certified to ISO 9001 standard

PTFE (Polytetrafluoroethylene) Hydrophilic Membrane

  • "Universal" membrane - Ideal for both aqueous and organic samples
  • Strong chemical stability and inertia
  • Strong acid and alkali solvent filtration
  • Chemically resistant to all solvents
  • pH Range: 1-14

Specifications
Diameter 13mm 30mm
Housing Material PP PP
Filtration Area (cm²) 0.092 4.9
Holdup Volume (μl) <10 <120
Volume Throughput (ml) 10 100
Connections (Inlet/Outlet) Female Luer Lock Inlet / Male Luer Slip Outlet Female Luer Lock Inlet / Male Luer Slip Outlet
Max Operating Pressure (psi) 87 87
Max Operating Temperature (°C) 100 100
Prefilter PP PP
Syringe Filters Brochure

Ordering Information

Item Number ImageDescription Color UnitQuantity Unit Price
SF-PTFE-2213-S Syringe Filter, PTFE Hydrophilic Membrane, 0.22μm Porosity, 13mm Diameter, PP Housing, STERILE, Individually Wrapped Syringe Filter, PTFE Hydrophilic Membrane, 0.22μm Porosity, 13mm Diameter, PP Housing, STERILE, Individually Wrapped Red Box of 50 $103.60
Syringe Filter, PTFE Hydrophilic Membrane, 0.22μm Porosity, 13mm Diameter, PP Housing, STERILE, Individually Wrapped Syringe Filter, PTFE Hydrophilic Membrane, 0.22μm Porosity, 13mm Diameter, PP Housing, STERILE, Individually Wrapped
Item Number SF-PTFE-2213-S
Unit Price $103.60
Color Red
Unit Box of 50
Quantity
SF-PTFE-2230-S Syringe Filter, PTFE Hydrophilic Membrane, 0.22μm Porosity, 30mm Diameter, PP Housing, STERILE, Individually Wrapped Syringe Filter, PTFE Hydrophilic Membrane, 0.22μm Porosity, 30mm Diameter, PP Housing, STERILE, Individually Wrapped Red Box of 50 $179.20
Syringe Filter, PTFE Hydrophilic Membrane, 0.22μm Porosity, 30mm Diameter, PP Housing, STERILE, Individually Wrapped Syringe Filter, PTFE Hydrophilic Membrane, 0.22μm Porosity, 30mm Diameter, PP Housing, STERILE, Individually Wrapped
Item Number SF-PTFE-2230-S
Unit Price $179.20
Color Red
Unit Box of 50
Quantity
SF-PTFE-4513-S Syringe Filter, PTFE Hydrophilic Membrane, 0.45μm Porosity, 13mm Diameter, PP Housing, STERILE, Individually Wrapped Syringe Filter, PTFE Hydrophilic Membrane, 0.45μm Porosity, 13mm Diameter, PP Housing, STERILE, Individually Wrapped Red Box of 50 $103.60
Syringe Filter, PTFE Hydrophilic Membrane, 0.45μm Porosity, 13mm Diameter, PP Housing, STERILE, Individually Wrapped Syringe Filter, PTFE Hydrophilic Membrane, 0.45μm Porosity, 13mm Diameter, PP Housing, STERILE, Individually Wrapped
Item Number SF-PTFE-4513-S
Unit Price $103.60
Color Red
Unit Box of 50
Quantity
SF-PTFE-4530-S Syringe Filter, PTFE Hydrophilic Membrane, 0.45μm Porosity, 30mm Diameter, PP Housing, STERILE, Individually Wrapped Syringe Filter, PTFE Hydrophilic Membrane, 0.45μm Porosity, 30mm Diameter, PP Housing, STERILE, Individually Wrapped Red Box of 50 $179.20
Syringe Filter, PTFE Hydrophilic Membrane, 0.45μm Porosity, 30mm Diameter, PP Housing, STERILE, Individually Wrapped Syringe Filter, PTFE Hydrophilic Membrane, 0.45μm Porosity, 30mm Diameter, PP Housing, STERILE, Individually Wrapped
Item Number SF-PTFE-4530-S
Unit Price $179.20
Color Red
Unit Box of 50
Quantity
Summary: $0.00
