Common Types of Microscopes
Common Types of Microscopes
There are several types of microscopes, each with its own specific uses and advantages. Learn about some of the most common types of microscopes:

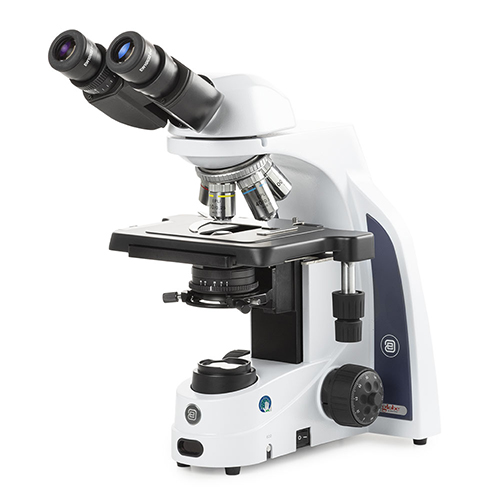

Compound Microscope
A compound microscope is an optical instrument that uses a combination of lenses to magnify and visualize small objects, such as cells or microscopic organisms, that are not visible to the naked eye. It consists of two or more lenses that work together to magnify the image of the specimen being observed.
The basic components of a compound microscope include an objective lens, which is located near the specimen and produces a magnified image, and an eyepiece lens, which is located at the top of the microscope and magnifies the image further. The lenses are arranged in such a way that the image produced by the objective lens is inverted and reversed, and then magnified again by the eyepiece lens to produce a final image that is upright and magnified.
The compound microscope also has a light source, usually located beneath the stage, which illuminates the specimen, and a focus mechanism that allows the user to adjust the focus of the lenses to obtain a clear image. Compound microscopes can have different magnification levels, depending on the lenses used, and can also be equipped with additional features such as a mechanical stage for precise movement of the specimen and a camera for capturing images.

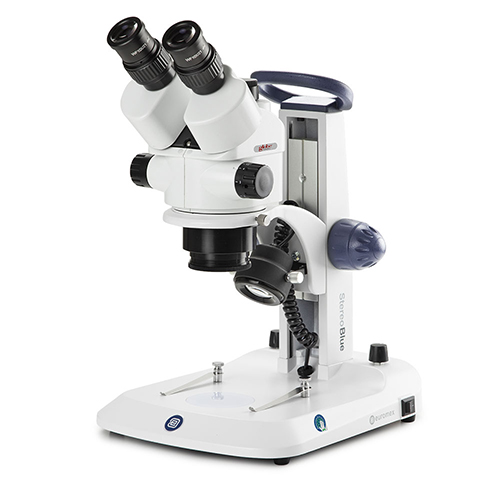

Stereo Microscope
A stereo microscope, also known as a dissecting microscope, is an optical instrument that is used to view three-dimensional objects at low magnification. Unlike a compound microscope, a stereo microscope has two separate optical paths for each eye, which allows for a three-dimensional view of the object being observed.
The basic components of a stereo microscope include two objective lenses that work together to provide a stereoscopic image of the specimen being observed. The lenses are arranged at a fixed distance from each other and at an angle that provides a binocular view of the specimen. The specimen is placed on a stage that can be moved and rotated for better viewing.
Stereo microscopes are typically used for examining larger objects that require low magnification, such as insects, plants, and rocks. They are also commonly used in biology, zoology, geology, and other fields that require the observation of three-dimensional objects.
Stereo microscopes can have different magnification levels, depending on the lenses used, and can also be equipped with additional features such as adjustable zoom and focus, illumination sources, and cameras for capturing images.

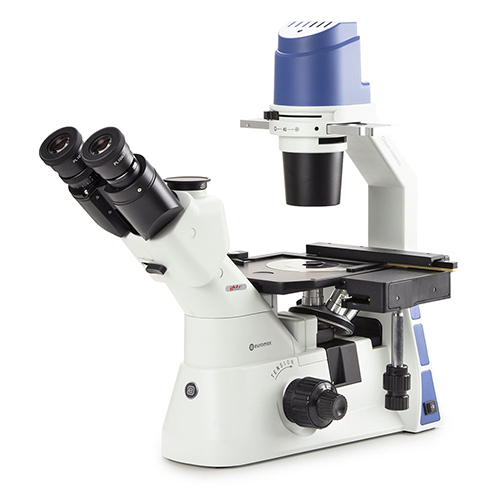

Inverted Microscope
An inverted microscope is a type of microscope where the position of the lenses is inverted or flipped, relative to a traditional microscope. In an inverted microscope, the objective lens is located below the specimen stage, while the light source and condenser lens are located above the specimen stage.
This design allows for the observation of samples that are too thick, large or heavy for a traditional upright microscope, as the sample can be placed in a container or Petri dish and observed from below. This makes it ideal for observing living cells, tissues, or organisms in a culture dish or a liquid medium.
Inverted microscopes are widely used in cell biology, microbiology, and other fields that require the observation of living cells and tissues. They can be equipped with a variety of accessories, such as phase contrast, fluorescence, and differential interference contrast (DIC) modules, that enable visualization of cellular structures and organelles. Additionally, they can be used in combination with digital cameras and software to capture and analyze images of cells and tissues.

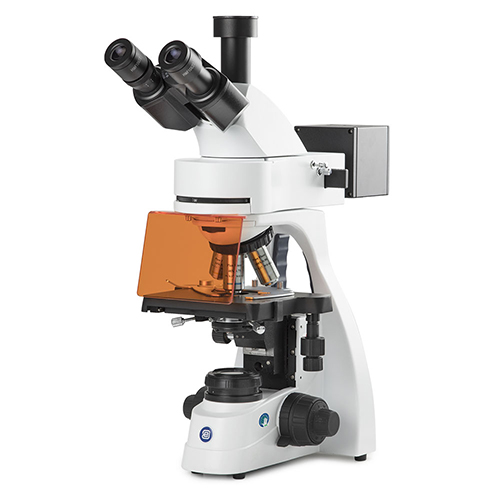

Fluorescence Microscope
A fluorescence microscope is a type of microscope that uses fluorescence to study the properties of biological or non-biological samples. It works by exciting molecules with a specific wavelength of light, causing them to emit light of a longer wavelength.
The sample is first labeled with a fluorescent dye or fluorescent protein that specifically binds to the target molecules of interest. When the sample is excited with a specific wavelength of light, the fluorescent molecules in the sample emit light of a different wavelength, allowing for visualization and analysis of the labeled molecules.
Fluorescence microscopy is widely used in the fields of biology, chemistry, physics, and materials science, among others. It is particularly useful for visualizing cellular components and studying cellular processes in living cells and tissues. With the use of advanced techniques like confocal microscopy and super-resolution microscopy, fluorescence microscopy has become an essential tool for understanding the complex structures and functions of biological systems.

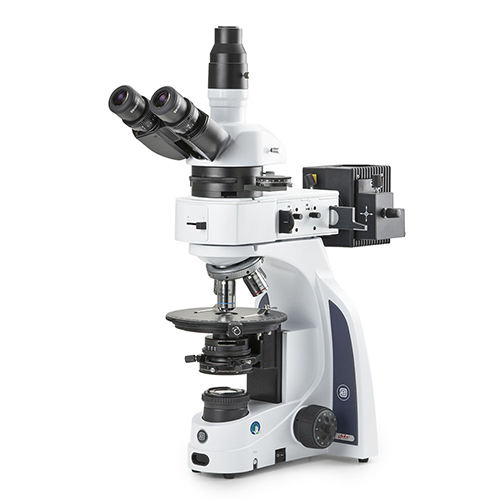

Polarizing Microscope
A polarizing microscope is a type of optical microscope that uses polarized light to examine the properties of various materials. It consists of two polarizing filters that are placed on opposite sides of the sample, one on the top and the other on the bottom. The polarizing filters are oriented at right angles to each other, and they allow only light waves that are polarized in a specific direction to pass through.
The polarized light passes through the sample and interacts with its various properties, such as birefringence, dichroism, and pleochroism. Birefringence refers to the splitting of a single ray of light into two rays as it passes through certain materials, while dichroism and pleochroism refer to the selective absorption of light by certain materials.
The polarizing microscope is commonly used in the fields of geology, mineralogy, petrology, and materials science to examine the structure and properties of various materials, such as crystals, rocks, and minerals. It can also be used in biological applications to examine the properties of certain biological materials, such as collagen and muscle fibers.
These are just a few examples of the many types of microscopes available, and each type has its own specific applications and advantages.
