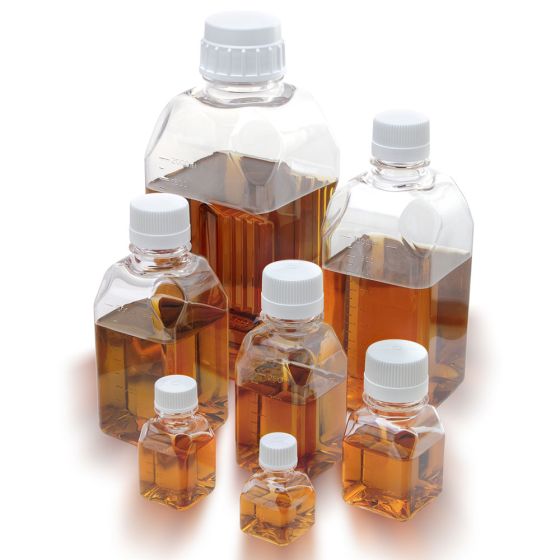

Diamond® RealSeal™ Square PETG Media Bottles
Diamond® RealSeal™ PETG Square Media Bottles protect media, laboratory reagents, and buffers during storage and transport. Perfect for cold storage, the PETG bottles remain shatterproof even at -40ºC. Low transmission rates of O2 and CO2 maintain optimum pH values for solutions in storage. Diamond RealSeal PETG bottles include white HDPE caps with integrated seal rings and matching semi-buttressed threads for leakproof performance to 95kPa. Bottles are provided sterile and ready to fill with tamper evident shrink bands in tray packs for convenience.
| Item # | Capacity | Closure Size | Neck ID | Bottle Dims | Height | Height w/ Cap |
| 7610030 | 30ml | 20mm | 14mm | 38 x 38mm | 63mm | 65mm |
| 7610060 | 60ml | 24mm | 18mm | 41 x 41mm | 83mm | 83mm |

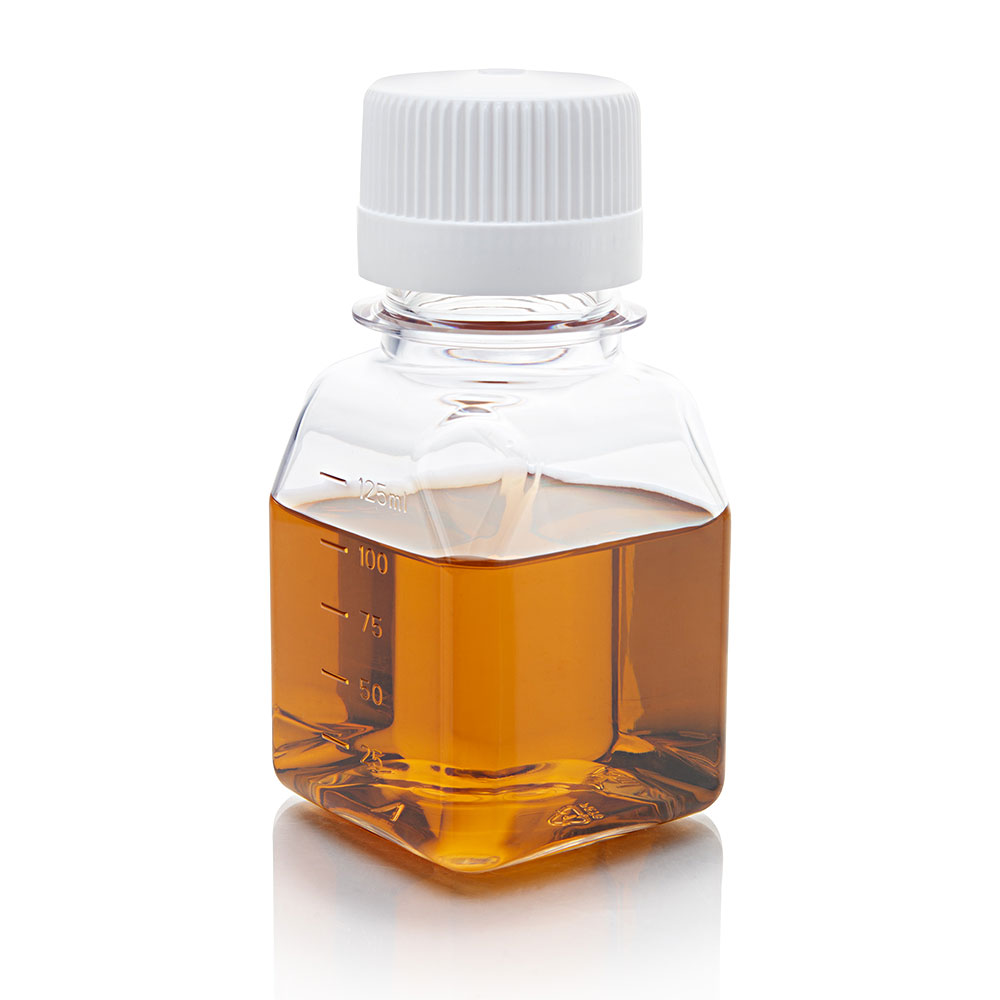

| 7610125 | 125ml | 38mm | 28mm | 54 x 54mm | 111mm | 111mm |

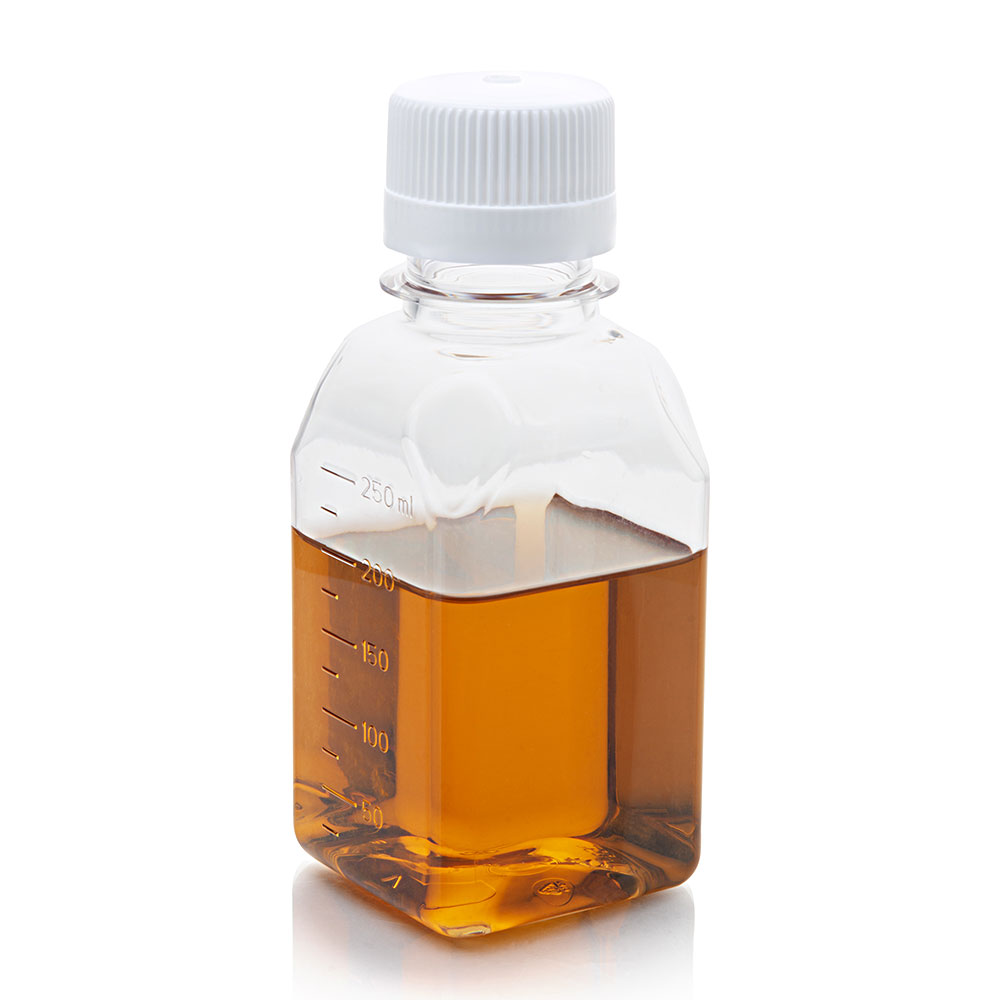

| 7610250 | 250ml | 38mm | 28mm | 60 x 60mm | 148mm | 148mm |

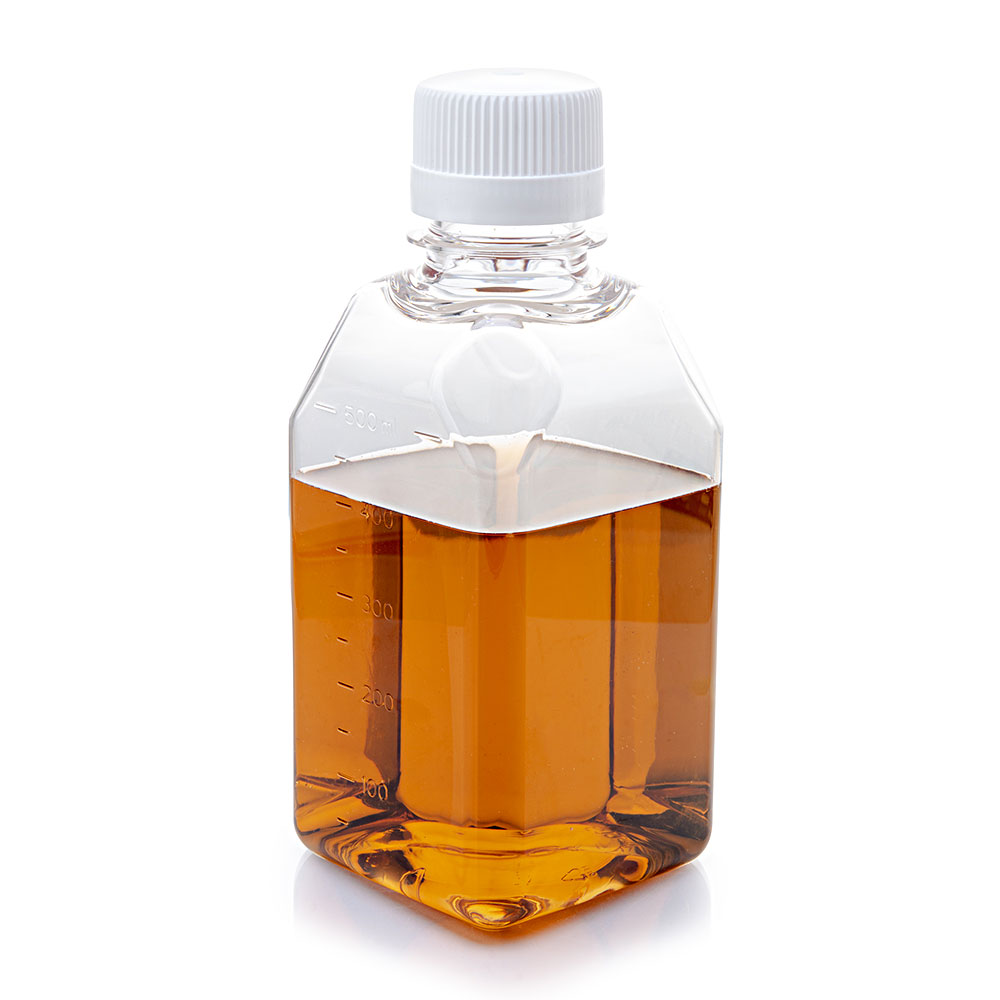

| 7610500 | 500ml | 38mm | 28mm | 75 x 75mm | 174mm | 174mm |

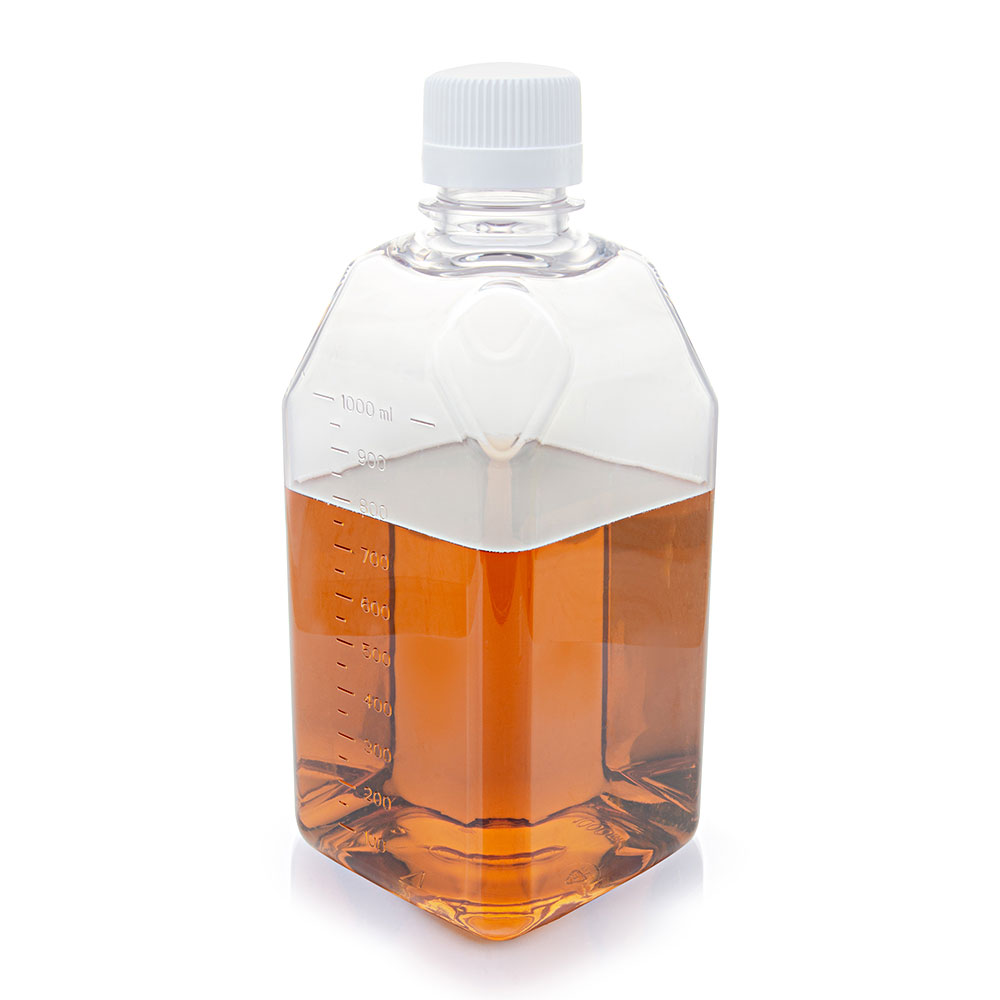

| 7611000 | 1000ml | 38mm | 28mm | 94 x 94mm | 220mm | 220mm |
| 7612000 | 2000ml | 53mm | 39mm | 117 x 177mm | 273mm | 273mm |
The Diamond® RealSeal™ Advantage:
Medical Grade Resins to Meet Demanding Requirements
- USP Class VI for pharma and research applications
- FDA CFR-21 compliant for food contact
- Free of heavy metals and RoHS compliant
- BPA and phthalate free
Manufactured in a Controlled Environment
- Produced and packaged in ISO Class 8 Cleanroom
- ISO 9001 and ISO 13485 production facility
Leakproof, Linerless Caps for Secure Closure
- Engineered with semi-buttressed threads for superior performance
- Integrated seal ring molded into cap to prevent leaks
- Maintains seal integrity at pressures up to 95 kPa
Sterile and Ready for Filling
- Gamma sterilized to SAL 10-6
- Tamper evident shrink bands ensure sterility before filling
- DNase / RNase free
- Non-pyrogenic and non-cytotoxic
- Molded graduation marks for reference during filling
PETG Bottle Material Protects Contents During Storage
- Limits transmission of O2 and CO2 to protect pH sensitive solutions
- Shatterproof even at -40ºC
- Temperature range -80ºC to 60ºC
